Non flat imaging experiment

Initial design.
  • 3D structure (prestructured wafer)
  • Depth of grooves: 100um
  • Size: 2.5mm x 2.5mm
  • Resolution: 1um
Holographic mask (top view)

Aerial images, digital microscope

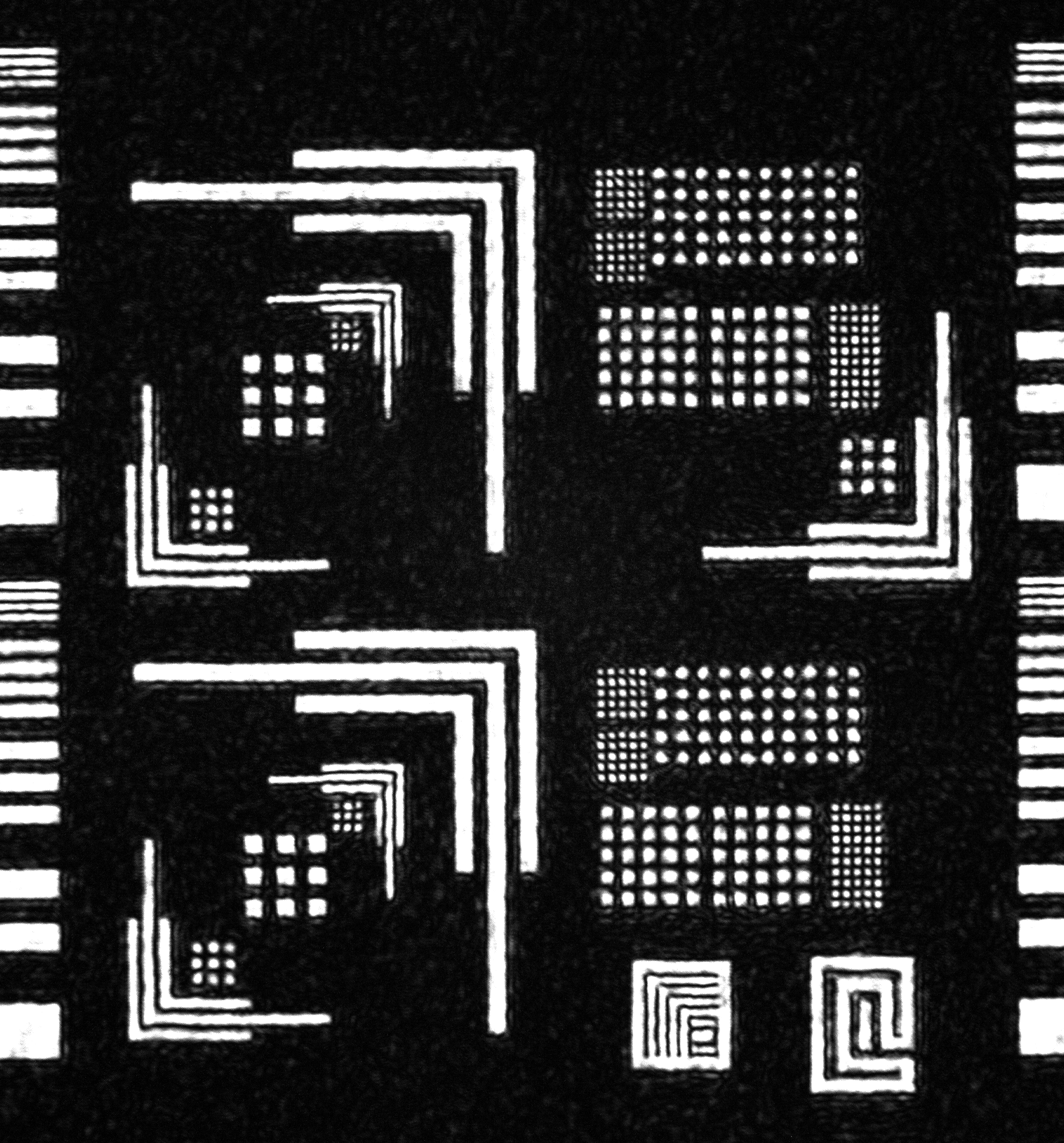

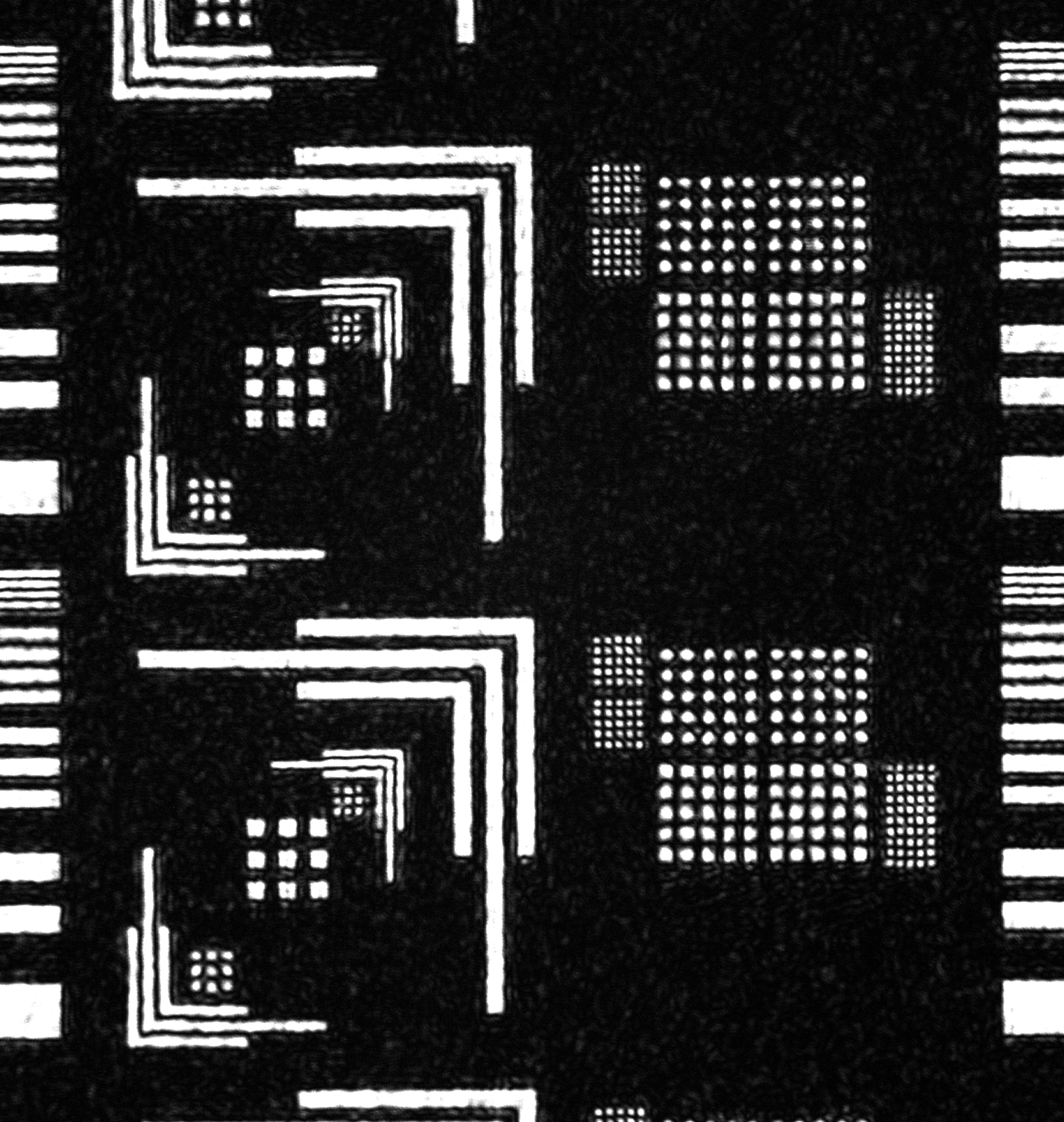

bottom plane top plane
